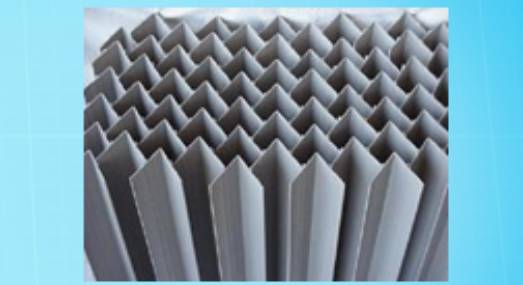

Tube Settler Media
Tube Settler Media
The TUBE SETTLERS MEDIA provides an cost effective alternative to conventional clarifiers for water and waste water clarification process. It consists of a service of Tubesined at an angle of 60o each other and joined together with the result that large settling surfaces are obtained with in a relatively small area. This clarifier is 5 times more efficient than any other clarifier.
Advantages
- » Laminar flow ensures excellent treated water quality.
- » Wide choice of materials of construction such as steel, concrete/FRP.
- » Non-corrosive tubes can be lifted easily for cleaning without shutdown.
- » Clarifier media have no moving parts - so no loss of energy.
- » The distribution and entry velocity are minimum resulting in maximum efficiency and better effluent quality.
- » No maintenance cost.
- » The efficient design minimizes space requirements.
Technical Specifications
| DISTANCE BETWEEN ADJACENT TUBES | HORIZONTAL-120MM VERTICAL-44MM |
|---|---|
| MOC of Media | PVC |
| SHAPE OF TUBE | HEXAGONAL & Square Shape |
| Tube Fitting | TONGUE AND GROOVE |
| THICKNESS | 1.1MM (+/- 0.1 MM) |
| MAXIMUM CONTINUOUS WORKING TEMPERATURE | 55 DEG. C |
| STORAGE | MEDIA MUST BE STORED IN A COVERED PLACE WITH ADEQUATE VENTILATION |
| Colour | Black |
| PLAN SETTLING AREA | 11M2/M3 (AT 60 DEG. SLOPE) 13M2/M3 (AT 55 DEG. SLOPE) |
| height of Media | 750mm, 1000mm |
